The standard F-108 Engine Oil Drain Valve

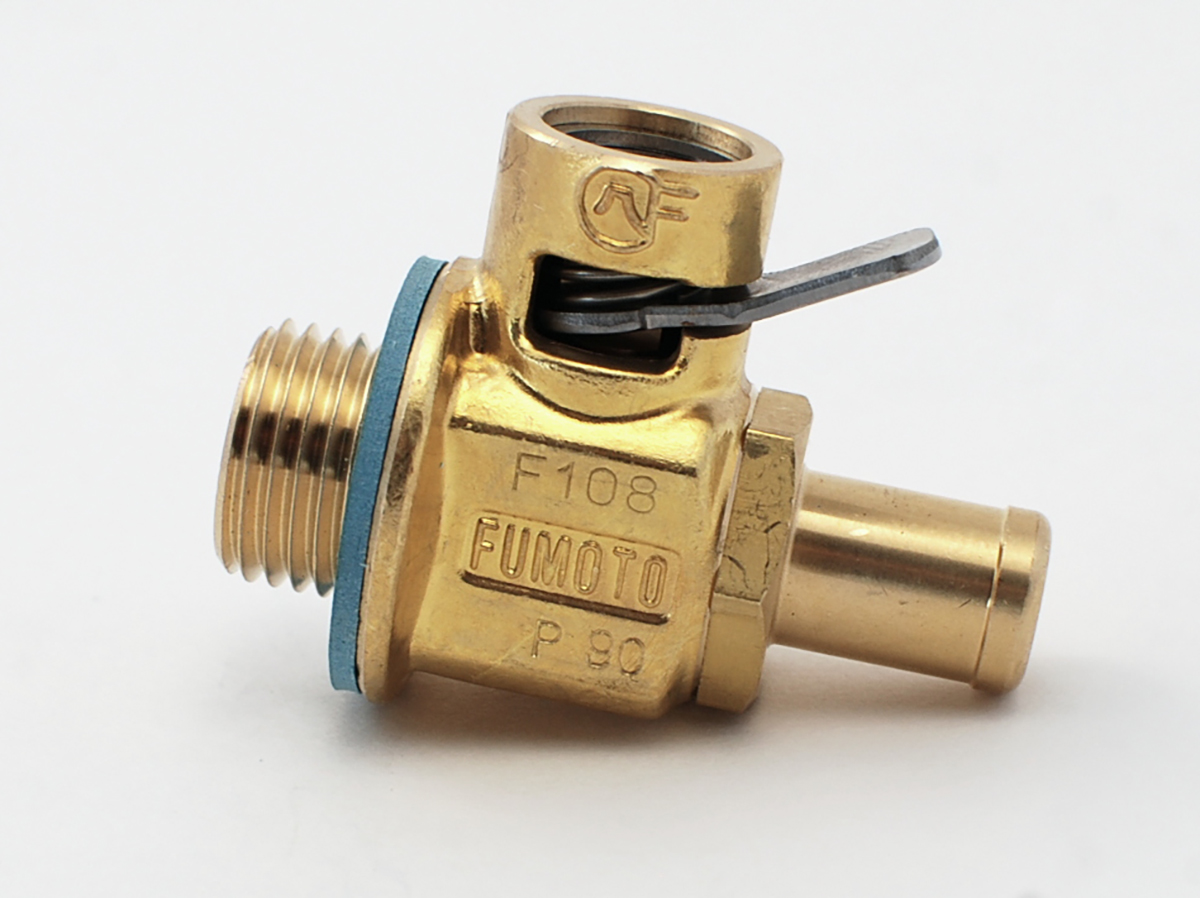

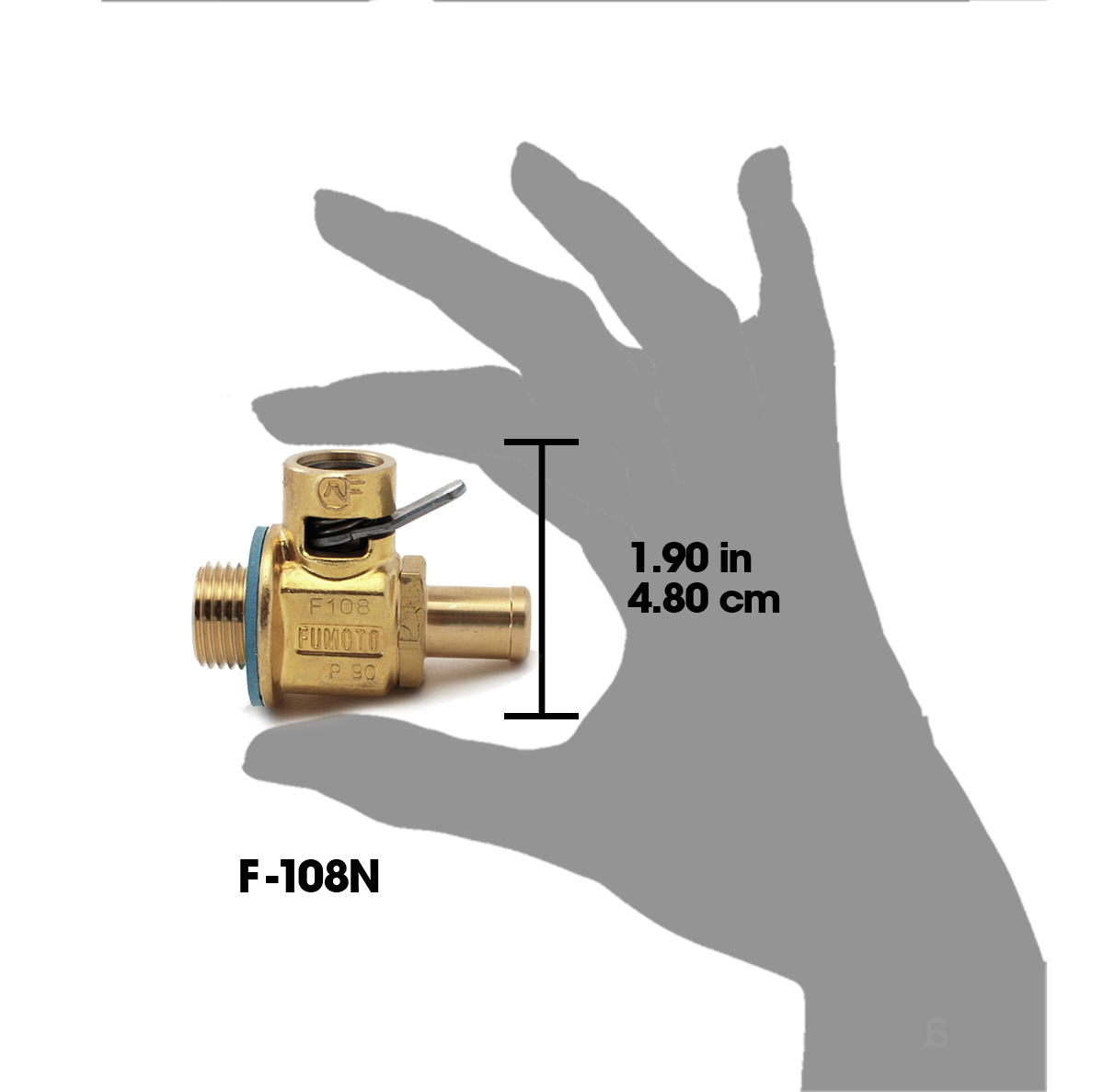

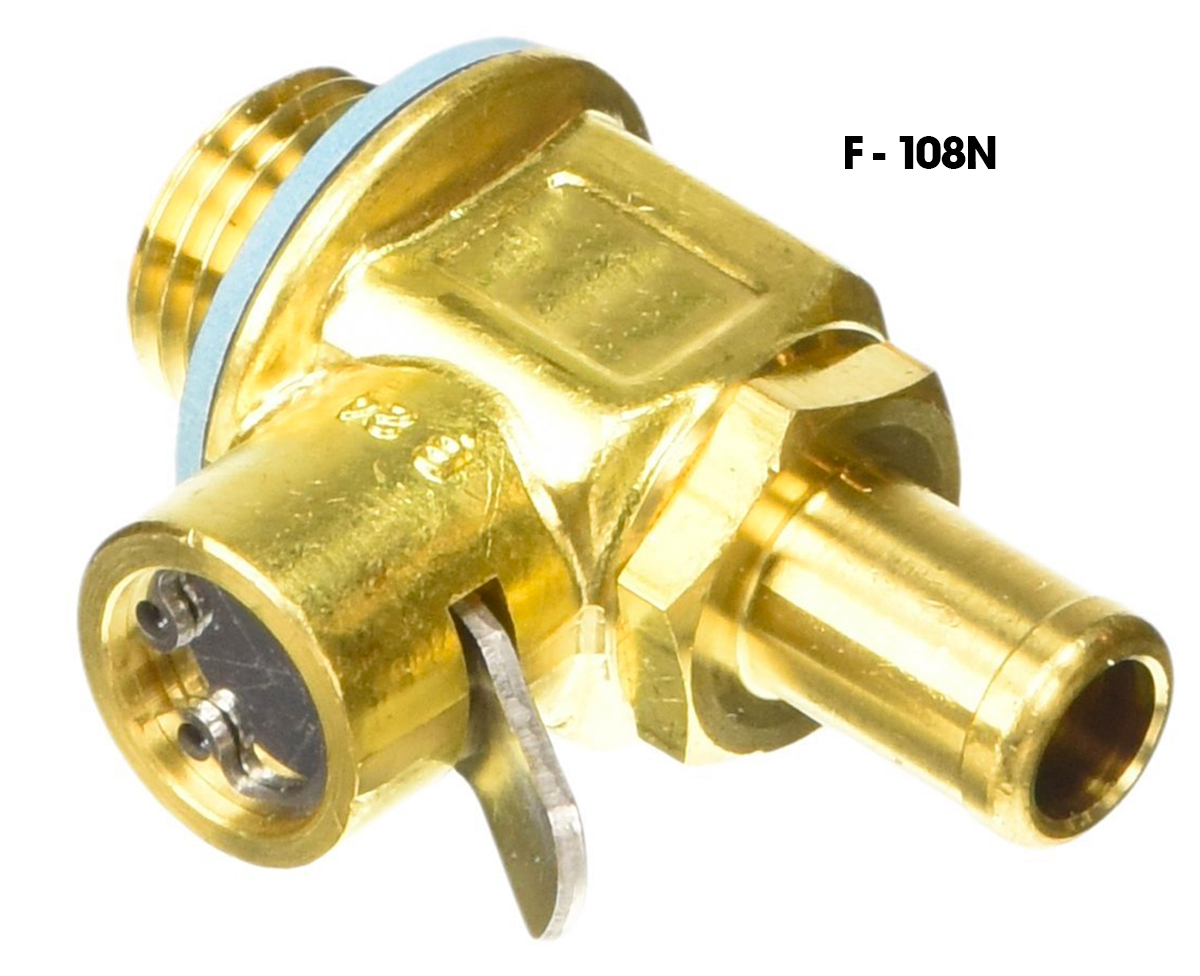

The F-108N Engine Oil Drain Valve
with nipple for hose attachment
Engine Oil Drain Valve
with Nipple for Hose Attachment

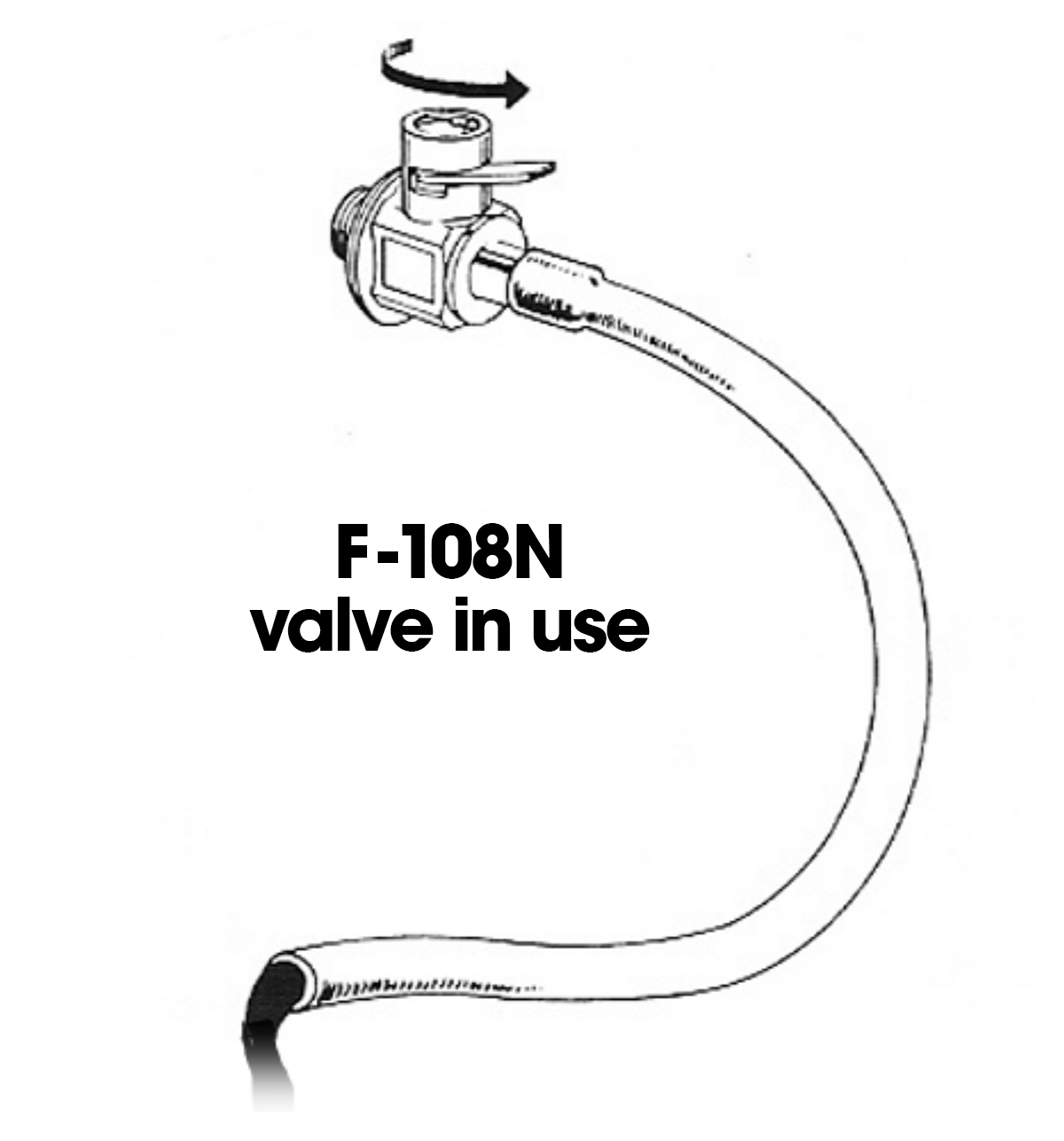

USING THE OIL DRAIN VALVE WITH A HOSE
FACILITATES EASY OIL CHANGES IN HARD-TO-REACH MODELS
Attention: California Residents
About California Proposition 65
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help california consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
We are providing the following warning for products linked to this page:
WARNING: This product contains chemicals known to the State of California to cause cancer and birth defects or other reproductive harm.
California requires the following notice:
WARNING: Motor vehicles contain fuel, oils and fluids, battery posts, terminals and related accessories which contain lead and lead compounds and other chemicals known to the State of California to cause cancer, birth defects and other reproductive harm. These chemicals are found in vehicles, vehicle parts and accessories, both new and as replacements. When being serviced, these vehicles generate used oil, waste fluids, grease, fumes and particulates, all known to the State of California to cause cancer, birth defects, and reproductive harm.
Additional Information about Proposition 65
For background on the new Proposition 65 warnings, see https://www.p65warnings.ca.gov/new-proposition-65-warnings.
Proposition 65 and its regulations are posted at https://oehha.ca.gov/proposition-65/law/proposition-65-law-and-regulations.
ATTENTION CALIFORNIA CUSTOMERS
Installation for Standard Fumoto Valves
Prepare: Remove the drain plug from your oil pan and drain oil completely. Be sure that the surface of your oil drain port is clean before proceeding with installation.
Assemble: Place the blue fiber gasket (not required for tapered thread or O-ring valves) onto the valve so it will sit flat between the oil pan and the valve once installed.
Hand-Tighten: Begin gently threading the valve into your oil drain port by hand. Once you have ensured that the valve is straight and not cross-threaded, hand-tighten completely.
Torque: Tighten the valve with a crescent wrench on the body of the valve* an additional 1/8 to 1/4 turn. Do not over tighten. *Do not use a wrench on the hex head if present
Close and lock: Close the valve by firmly turning the control lever clockwise until it stops and is perpendicular to the oil outlet. The lever will click into the recess and lock in position. You should not be able to rotate the lever without first lifting upward.
Clip on and fill up: Install a lever clip if desired around the turret of the valve. If the lever is not seated properly, the lever clip will not fit. Refill the oil to complete your oil change. Always inspect the oil pan for leaks before operating your vehicle.
To open the valve, remove the lever clip if installed then lift the control lever upward and turn 90° counterclockwise.
To close the valve, turn the control lever firmly clockwise until it stops and is perpendicular to the oil outlet. The lever will click into the recess and lock in position. You should not be able to rotate the lever without first lifting upward. Reinstall the lever clip if desired around the turret of the valve. If the lever is not seated properly, the lever clip will not fit. Always inspect the oil pan for leaks before operating your vehicle.
